Nitrogen Gas Generator from Gas Generation Equipment Supplier or Manufacturer
Why choose PSA nitrogen generator ?
High nitrogen purity

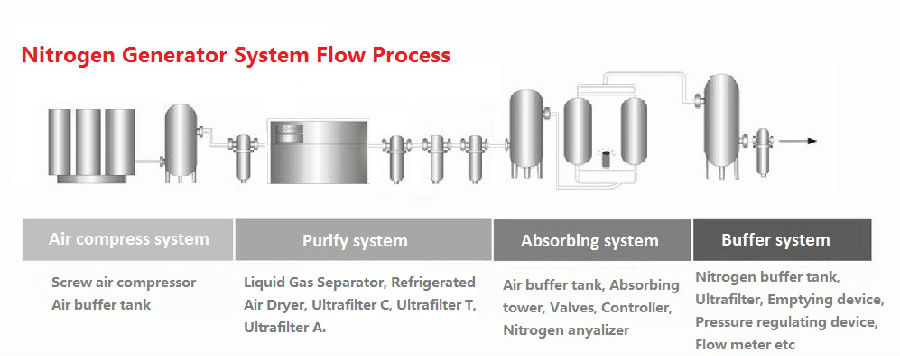

PSA nitrogen generator plants allow production of high-purity nitrogen from air, which membrane systems are unable to provide – up to 99.9995% nitrogen. This nitrogen purity may also be ensured by cryogenic systems, but they are considerably more complex and justified only by large consumption volumes. The nitrogen generators use CMS (carbon molecular sieve) technology to produce a continuous supply of ultra high purity nitrogen and are available with internal compressors or without.
Low operating costs
By substitution of out-of-date air separation plants nitrogen production savings largely exceed 50%.[citation needed]
The net cost of nitrogen produced by nitrogen generators is significantly less than the cost of bottled or liquefied nitrogen.
Nitrogen Generators Create Less Impact on the Environment
Generating nitrogen gas is a sustainable, environmentally friendly and energy efficient approach to providing pure, clean, dry nitrogen gas. Compared to the energy needed for a cryogenic air separation plant and the energy needed to transport the liquid nitrogen from the plant to the facility, generated nitrogen consumes less energy and creates far fewer greenhouse gases.
Technical Features
1). Imported pneumatic valves, using life is more than 3 million times;
2). Siemens PLC Intelligent program controller, easy and stable operation;
3). Specific inert ceramic balls diffusion technology makes airflow distribution evenly; improve the adsorption efficiency for adsorbent;
4). Self-force cylinder compress device (Patent No.: ZL-200820168079.9) to protect the using life of the carbon molecular sieve;
5.) Original centrifugal vibration Filling (Patent No.: ZL-200820168078.4) effectively ensure the maximum filling volume.
Specification
1) Purity: 99.999%
2) Capacity: 3000Nm3/h
3) Pressure out: 0-0.8Mpa (1.0~15.0MPa is also available)
4) Dew point: -45 degree– -70
How to get a prompt quotation?
Do not hesitate to send us mail with the following data.
1) N2 flow rate: _____Nm3/hr
2) N2 purity: _____%
3) N2 discharge pressure: _____Bar
4) Voltages and Frequency: ______V/PH/HZ
5) Nitrogen Application.
